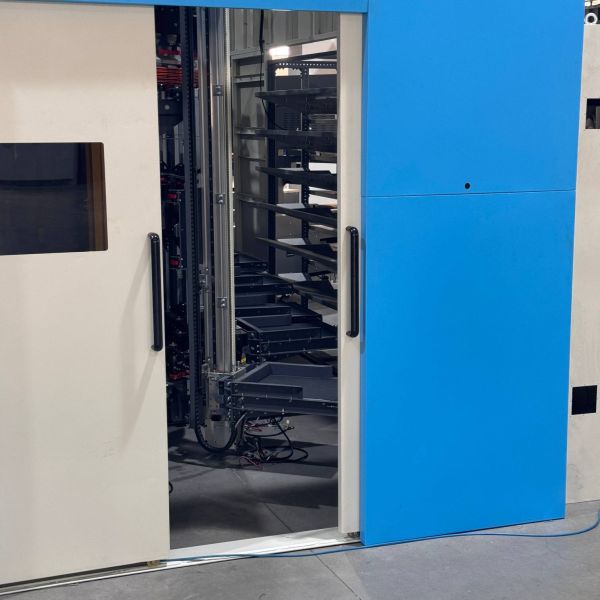

Top Barcode Scanning Parcel Sorting System For E-Commerce Warehouses

Product Overview

This top barcode scanning parcel sorting system is an automated sorting solution designed for e-commerce warehouse order fulfillment operations. The equipment type is Vertical Sorter, and it is mainly used for sorting, classifying, and routing small parcels, standard packaged goods, and multi-SKU orders. The system uses top barcode scanning to identify parcel information and matches it with order system data to direct items to designated sorting slots for order consolidation, order checking, pre-packing allocation, and batch classification.

Based on the listed parameters, the machine provides a standard sorting capacity of 4,000 items/hour with a maximum running speed of 1 m/s. The standard configuration includes 52 sorting slots and 2 feeding units, both expandable according to project requirements. The machine supports both manual feeding and automatic feeding, making it suitable for connection with conveyor lines, picking zones, and order handling systems.

For e-commerce warehouse projects, this type of equipment is more suitable for standard parcels and regularly packaged goods with readable barcodes, relatively regular shapes, and dimensions within the listed operating range. Top barcode scanning is suitable for standard feeding conditions, but actual recognition performance should still be confirmed according to barcode position, packaging surface condition, and feeding posture.

Application Background

In e-commerce warehouses and small parcel fulfillment operations, order handling usually includes the following characteristics:

• SKU variety is high, and order structures are often complex.
• The sorting system not only routes orders, but also affects downstream consolidation, checking, packing, and shipping efficiency.
• The workflow requires barcode identification, slot allocation, and verification logic to reduce mis-sorting risk.
• The equipment should be compatible with both manual and automatic feeding modes.
• As order volume grows, slot quantity, workstation layout, and feeding rhythm may need future expansion.

For medium-throughput, multi-SKU, and small parcel routing projects, a top scanning vertical sorter provides a relatively clear process structure between identification logic, sorting destination management, and downstream order handling.

Technical Solution

After items enter from the feeding side, the machine captures parcel information through top barcode scanning and matches it with order system data to determine the target slot. During sorting, LED indication helps operators identify the correct destination, while PDA barcode verification can be used to establish the relationship between the parcel, the order container, and the sorting position.

The system supports both manual feeding and automatic feeding, allowing it to match different levels of site automation, upstream conveyor conditions, and order structures. The standard configuration includes 52 sorting slots and 2 feeding units, both expandable according to order growth and layout changes.

Transmission Features

• Uses top barcode scanning for identification of standard parcels and regularly packaged goods.
• Standard configuration includes 52 sorting slots for multi-order and multi-SKU sorting workflows.
• Standard capacity is 4,000 items/hour with a maximum running speed of 1 m/s.
• Supports manual feeding / automatic feeding.
• Standard configuration includes 2 feeding units, with future expansion available.
• Sorting process control can be supported through LED indication and PDA verification.

Application Boundary

This page refers to a top barcode scanning parcel sorting vertical sorter mainly intended for standard packaged goods, regular parcels, small products, and common e-commerce order carriers.

The listed load range is 50 g – 30 kg, and the maximum item size is 400 × 300 × 300 mm, which makes the system more suitable for common e-commerce small parcels and regular packaged goods.

If the project involves oversized items, heavily deformable soft packages, serious barcode occlusion, reflective packaging surfaces, or unstable feeding posture, top scanning performance and sorting compatibility should be confirmed separately.

The listed 4,000 items/hour refers to standard configuration capability. Actual throughput still depends on item size, barcode readability, order structure, feeding rhythm, and slot utilization.

Specifications

Specification Notes

• 4,000 items/hour: standard configuration capacity suitable for medium-volume e-commerce warehouse and small parcel handling operations.
• 52 sorting slots: standard configuration for multi-order and multi-destination routing, with expansion available.
• Top barcode scanning: suitable for standard parcels with stable barcode presentation in the scanning zone.
• 2 feeding units: suitable for standard feeding rhythm, with expansion available if order flow increases.
• Expandable machine dimensions: final layout dimensions should be confirmed according to site space and process routing.

Applications

• e-commerce warehouse order sorting and parcel routing systems.
• e-commerce small parcel handling centers.
• integrated e-commerce and retail warehouse systems.
• third-party e-commerce logistics (3PL) warehouses.
• standard parcel automated sorting lines for common e-commerce parcel types.

System Integration

This equipment is usually not used as a standalone unit. It normally operates as a sorting module within a broader order handling process and can be integrated with:

• upstream feeding conveyor lines
• picking zones or order induction areas
• top barcode scanning identification units
• LED indication modules
• PDA verification terminals
• downstream consolidation, checking, packing, and shipping stations

In most projects, this type of sorter works together with upstream feeding and downstream order handling stations to form a complete sorting workflow.

Advantages

• Top barcode scanning is suitable for standard parcels and regular packaged goods.
• Standard capacity of 4,000 items/hour fits medium-throughput e-commerce operations.
• 52 sorting slots support multi-order and multi-destination allocation.
• LED indication + PDA verification helps reduce mis-sorting risk.
• Supports both manual and automatic feeding for different automation levels.
• Slots, feeding units, and layout are expandable for future business growth.

How to Select

• Confirm first whether the actual order volume matches the 4,000 items/hour standard configuration.
• Confirm whether parcel size, weight, and barcode presentation are suitable for top barcode scanning.
• Confirm whether 52 sorting slots are enough according to SKU count and order concurrency.
• Confirm whether manual feeding or automatic feeding is more suitable according to site automation level.
• If business growth is expected, reserve expansion space for slots and feeding units.

FAQ

Is this machine suitable for e-commerce warehouses?
Yes. It is suitable for e-commerce order fulfillment, small parcel sorting, and order classification workflows.

What scanning method does the machine use?
The standard configuration uses top barcode scanning.

What parcel types is it suitable for?
It is suitable for standard packaged goods, regular-shaped parcels, small products, and common e-commerce parcel types.

What feeding methods are supported?
Both manual feeding and automatic feeding are supported.

Can the machine be expanded?
Yes. The standard configuration includes 52 sorting slots, and expansion is available according to project requirements.

What parcel size and weight range can it handle?
It handles parcels from 50 g to 30 kg, with a maximum size of 400 mm × 300 mm × 300 mm.
